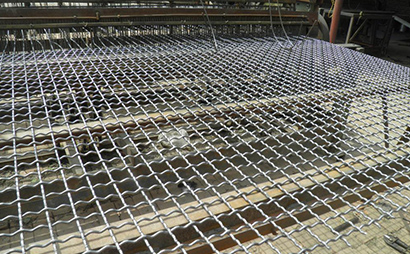

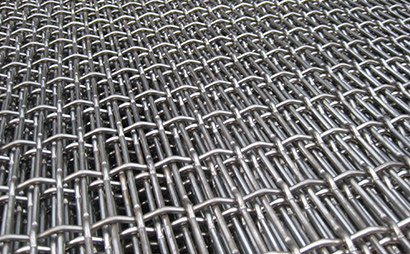

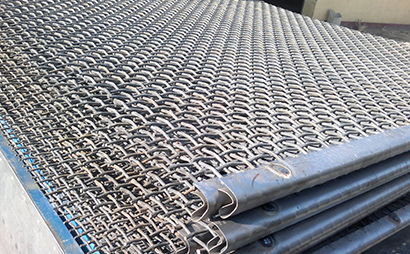

Crimped Wire Mesh

Crimped Wire Mesh: Wire Mesh Screen Series for Mine and Quarry

Materials:

It's made of 45Mn steel, 65Mn steel, high corbon iron wire, galvanized steel wire and stainless steel wire and other non-ferrous metal.

Weaving Patterns: weaving after crimping.

Most of types: double crimped, lock crimped, intermediate crimped

Surface treatment: galvanized, painting coating, smear oil

Features: crimped wire mesh offers stable structure and good strength.

Basic parameters:

Aperture width: 10 - 120mm in the case of multi-notch meshes and 4 - 40mm in the case of single-notch meshes.

Wire diameter: 1.0 - 5.5mm.

Mesh width: up to 2000mm.

General Use:

Crimped woven wire mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion. It is usually used as quarry screen in mine, quarry and other industrial fields as sieving, grading and separating screening materials. Some of the stainless steel crimped wire mesh could also be used for roasting flour food and meat.
