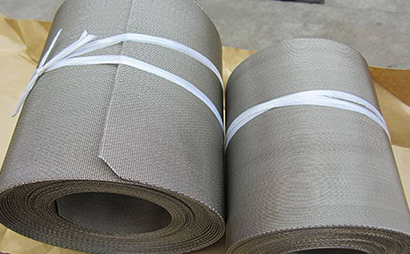

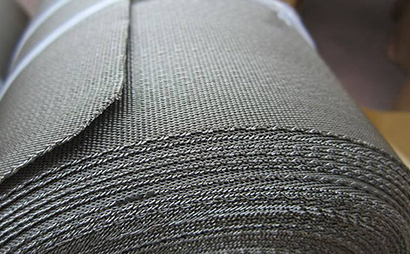

Twilled/Plain Dutch Woven Style

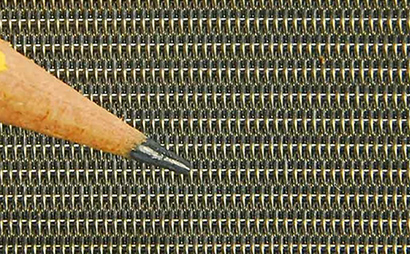

Wire cloth which has the same pattern as twilled weave except the warp wires are of a larger diameter than the shute wires & the shute wires are driven up tapers or wedge-shaped opening. Warp wires remain in a straight condition, but the shute wires take all the crimp. Due to the twilled weave construction, the shute wires are not only deformed in depth (crimps when formed around the warp wires) but also sideways.

Features:

Fine mesh holes give very high filter precision.

High tensile strength and can operate under heavy pressure.

Has a solid structure and a long service life.

Applications

woven wire cloth is mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks. And can be made to extruder screens for melt filtration.
